hydraulic vertical juicing press machine

Introduction of hydraulic vertical juicing press machine

The hydraulic vertical juicing press machine also called basket type ice wine press machine. It is developed with the advanced technology of Europe, and the controllable hydraulic pressure gauge system is original imported from Italy. This machine applies to ice grapes, white grapes and red grapes after fermented juice extract. It can also be used to press other raw materials which are with short length fibers. This static press mode will not destroy the organization of the raw material, so the final juice is very clear and can be used as high-end grape wine. It’s also ideal choice for fruit juice factory.
At the same time, the hydraulic vertical juicing press machine is multifunctional machine which is suitable for many kinds fruit juice squeezing. It can be used for juicing fruit and vegetable which has no big size kernels.

Working principle of hydraulic vertical juicing press machine:

Hydraulic vertical juicing press machine consists of such main machines as hydraulic system, mobile juice store plate, the basket and nylon mattress, hydraulic automatic control and manual hydraulic lift. The basket is composed of two semicircles which makes it quick and easy for disassembly and installation. And the structure of the stainless steel plate punching nice. All of the designs help the users to operate hydraulic vertical juicing press machine simply.

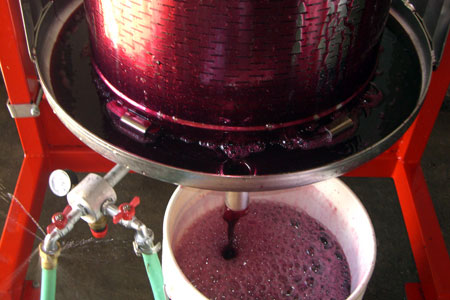

The juice receiving plate is set on the mobile cartframe and the basket is over the juice receiving plate. Then putting into the grapes, the trolley is placed under the mobile pressing plate of the rack. The juice is squeezed out under the function of mobile pressing blade. To improve the juice rate of the skin of grapes, there are nylon mattresses between grapes. The grape juice flow out from output pipe will gathered by juice receiving plate.

The advantages:

• The main parts of hydraulic vertical juicing press machine are made of AISI 304 stainless steel.
• Hydraulic vertical juicing press machine offers the movable juice collector, easy to operate and confirm to the standards of cleanliness.
• This machine is multifunctional machine which is suitable for many kinds of fruit and vegetable juice squeezing.
• The final juice pressed by hydraulic vertical juicing press machine is clean and without any impurities. And the final color is also not damaged.
• High juice yield with the complete pressed rind.

Technical parameters

Type	Diameter of basket	Power	MWP
TCKL-1	800 mm	1.5 kw	30 mpa
TC5L-2	1000 mm	2.2 kw	30 mpa
